GT-Sat duo LNB Quad

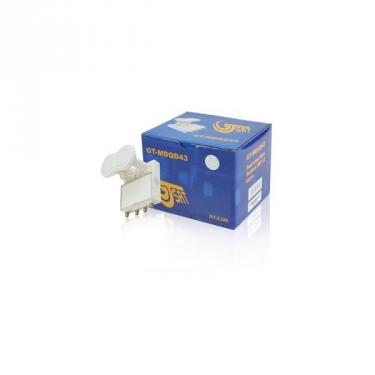

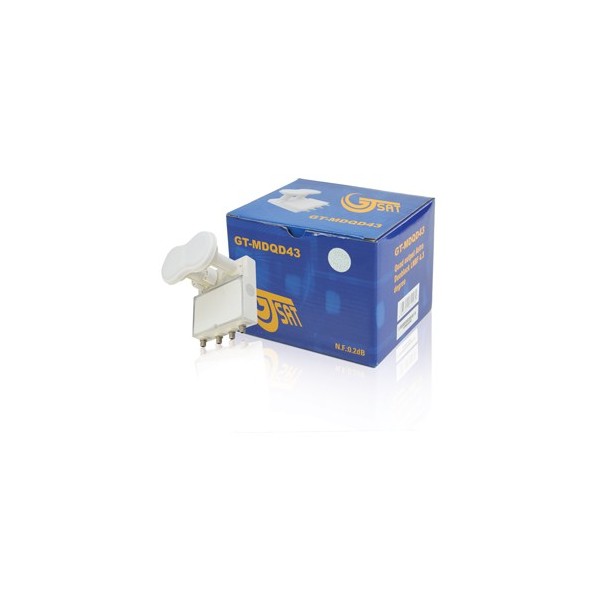

GT-SAT LNB-GT-MDQD43 productinformatie

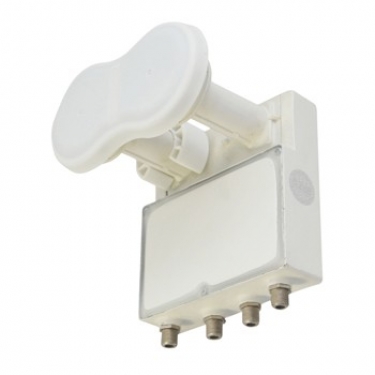

Quad output Astra duoblock 4.3°
Deze Monoblock Quad Output LNB is speciaal ontworpen voor de dual ontvangst van twee satellieten. Dit model is ontwikkelt voor 80cm schotels en kan tot op 4 ontvangers aangesloten worden.

• Input frequency range:
- Low Band: 10.7 – 11.7 GHz
- High Band: 11.7 – 12.75 GHz
• Output frequency range:
- Low frequency: 950 – 1950 MHz
- High frequency: 1100 – 2150 MHz
• Local oscillator frequency:
- Low frequency: 9.75 GHz
- High frequency: 10.60 GHz
• Local oscillator frequency stability: ±1 MHz (Max)@ room temperature
• Local oscillator frequency phase noise: -60 dB c/Hz @ 1 kHz (max.); -85 dB c/Hz @ 10 kHz (max.); -105 dB c/Hz @ 100 kHz (max.)
• Noise figure: 0.2 dB (Typ.)
• Conversion gain: 57 – 61 dB
• Gain flatness 26 MHz bandwidth: ±0.5 dB (Typ.)
• Polarity switching voltage:
- Vertical: 11.0 – 14.0 V (DC)
- Horizontal: 16.0 – 20.0 V (DC)
• Band switching:
- Low band : 0 kHz:
- High band : 22 kHz (±4 kHz)
• Cross polarisation isolation: 25 dB (Typ.)
• Image rejection: 40 dB (min.)
• Current consumption: 140/210 mA (Typ.)
• Output connector type: 75 Ω F-Female
• Output spurious: <-60 dBm
